E-Roll

Features of E-Roll for mass production(φ40～φ62).

Features of E-Roll for mass production(φ40～φ62).

Anilox Roll/Small Gravure Roll

The groove section is made of steel S25C pipe material, and both ends is made of stainless steel.
The cell vloume of each groove is precisely managed.
It is possible to manufacture the molds for special designs.

The groove section is made of steel S25C pipe material, and the two ends is made of stainless steel.
The cell vloume of each groove is precisely managed.
It is possible to manufacture the molds for special designs.

Steel S25C pipe material(Surface treatment is applied after grooving) + both ends made of stainless steel.

The groove section is made of steel S25C pipe material, and the both ends is made of stainless steel. So the E-Roll is both light-weighted and corrosion resistant.
Standard E-Roll(Diameter of the groove section is Φ50mm and the length is 1500mm), Compared to solid steel, it is possible to reduce the weight by 8.5kg.

The cell vloume of each groove is precisely managed.

The groove volume of E-Roll(both length direction and circle direction) is managed with high accuracy, so that, high-precision coating can be expected.

It is possible to manufacture the molds for special designs.

In addition to existing molds, it is possible to manufacture  the molds for special designs.
It is possible to manufacture the special spec. for groove lines per inch, the groove volume and the shape of the groove according to the customer's request.

Spec. list

Features of surface treatment

OSP

HCr.

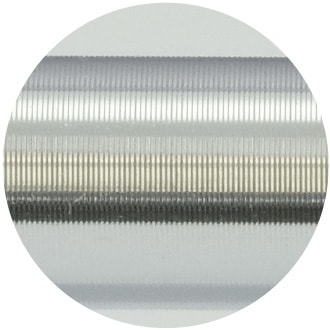

HCr layer is relatively hard and has excellent abrasion resistance, and corrosion resistance.

DLC

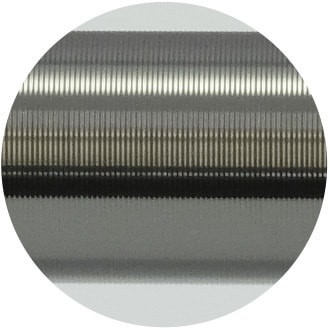

DLC layer is extremely hard and also low in coefficient of friction. In addition, DLC has a higher hydrophilic compared to SUS and HCr plate.
OSP
Catalog

HCr.

HCr layer is relatively hard and has excellent abrasion resistance, and corrosion resistance.



DLC

DLC layer is extremely hard and also low in coefficient of friction. In addition, DLC has a higher hydrophilic compared to SUS and HCr plate.

Delivery time

The delivery time is usually 2.5 to 3 months.
If you have a urgent request, please feel free to contact us.

Others·Support

Manufacturable size range

OSP

Diameter(mm)

φ40～φ62
Total length(mm)

～3000
Groove range length(mm)

Assign before manufacturing
※Please feel free to contact us if you need products of other sizes.

Quality assurance

We measure and regulate the shape of grooves(Such as pitch, height and pocket area).
Please feel free to contact us for other measurement items, or issurance of inspection sheet.


Pre-investigation

We can also investigate your anilox roll (small gravure roll) in-use now.
It's possible to find out the issues and problems caused by the anilox roll (small gravure roll) and propose solutions to them.


Post-delivery support

We can also investigate our products after use if necessary.
